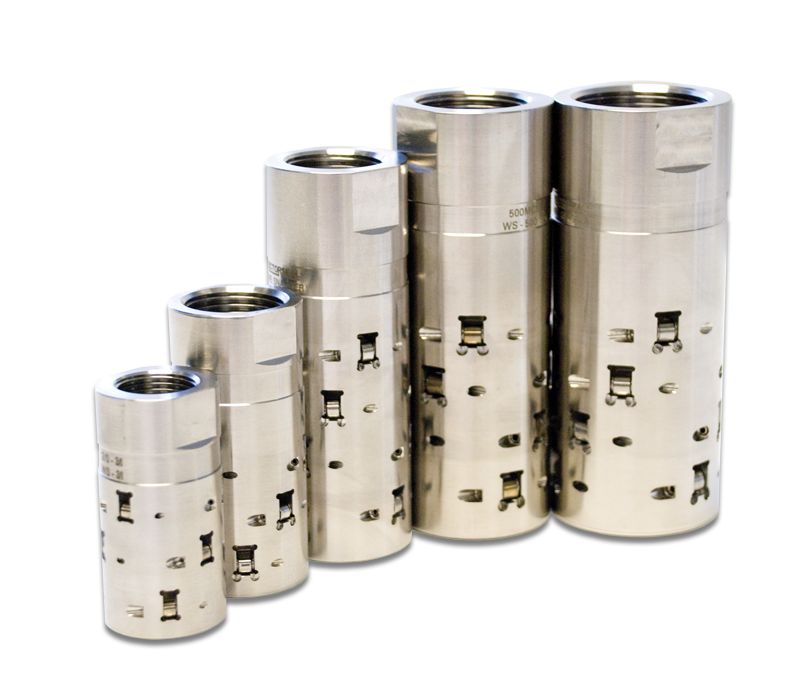

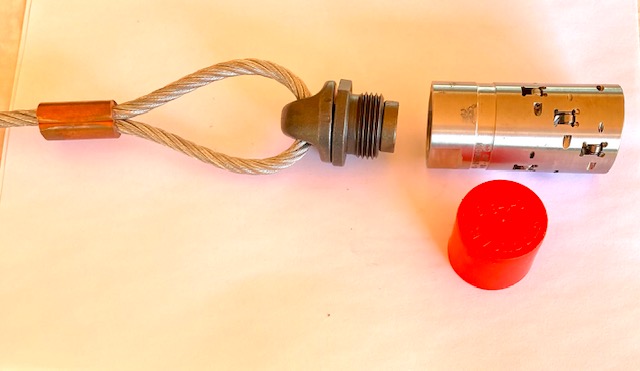

RectorSeal wire Snaggers are the most reliable tools for heavy wire pulls.
With spring-activated teeth for a stronger grip, a shorter designed tool body for easier conduit navigation & longer lanyards for better tool spacing, the RectorSeal Wire Snaggers are one of the best wire pulling tools on the market.
They replace the traditional pulling grips, pulling socks, knuckles and other less efficient methods of securing cable by using space age material and 21st Century technology
Wire Snaggers are faster, safer and more durable than other wire pulling devices. RectorSeal has combined ingenuity into a tool that saves time and money for contractors on every wire pulling job.
Machined from high-temperature stainless steel. The 20 different sized wire Snaggers are individually staggered for efficiency. They come in 5 groups of 4. You will start to save money from day one with these secure wire and cable pulling tools.

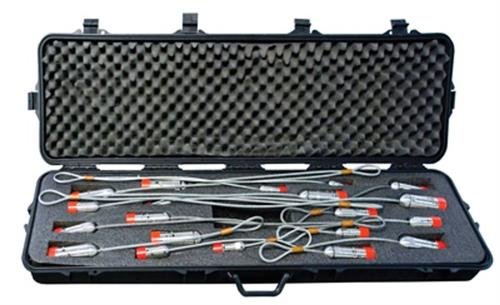

Master 20 Piece Set part 97958
Master 20 Piece Set for use on THHN & XHHN copper wire only
Contents:
4 ea 3/0 Wire Snaggers with 13", 20", 27", 34" staggered wire lanyards
4 ea 4/0 Wire Snaggers with 13", 20", 27", 34" staggered wire lanyards*
4 ea 350 mcm Snaggers with 13", 22", 31", 40" staggered wire lanyards
4 ea 500 mcm Snaggers with 13", 22", 31", 40" staggered wire lanyards
4 ea 600 mcm Snaggers with 13", 22", 31", 40" staggered wire lanyards
Includes a 3000 lb and 11000 lb pulling Clevis clip and 50 ft lanyard extenion
Note: The 4/0 snagger can also be used on 250 mcm copper cable.
The case weighs 75 lbs and will ship from the RectorSeal TX factory. Delivery time is usually 9-14 days as these parts are a special manufacture......... but well worth the wait.

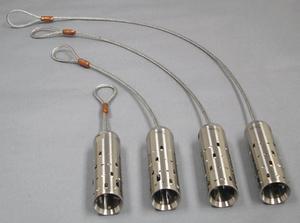

You may never have seen or used wire snaggers before, but you are going to be amazed at their efficiency. For your convenience I have added the individual sized wire snaggers, which are staggered and sold as a set of 4. If you only use specific size wire this is an affordable alternative to buying the full 20 piece set.
4 ea 3/0 Wire Snaggers with 13", 20", 27", 34" staggered wire lanyards
4 ea 4/0 Wire Snaggers with 13", 20", 27", 34" staggered wire lanyards *
4 ea 350 mcm Snaggers with 13", 22", 31", 40" staggered wire lanyards
4 ea 500 mcm Snaggers with 13", 22", 31", 40" staggered wire lanyards
4 ea 600 mcm Snaggers with 13", 22", 31", 40" staggered wire lanyards
Note: * The 4/0 wire snaggers can be used on 250 mcm copper wire
Depending upon your wire pull you will need the correct sized pulling clevis
Delivery time is usually 9-14 days as these parts are a special manufacture.
With its dual lock pulling design which uses uses both a cam lock head and a double braided wire to quickly secure cable to rope without the fear of losing a conductor. A true cable pulling 1st.
Dual lock pulling system using both a cam lock head and a double braided wire
to quickly secure cable to rope without the fear of losing a conductor
Double lock system
Each double lock Maxis Grips head rated at 4000 lbs.
Complete set 1/0 to 750 mcm
Holds securely to NO-LUBE wire
Disconnect wire from pulling heads in 2 minutes without cutting the wire
No cutting, stripping or weaving of wire to make pulling head
Easily moves through conduit and around 90 bends
Staggered lengths for easier movement
Keeps pulling head tight for easier movement through conduit
Rack-A-Tiers’ Penguin pullers are designed to enable contractors and electricians to pull wire without taping or crimping. It has four slots and an Allen-key screw to attach the puller to the end of a clevis. It also has a tapered, bullet-shaped end, which is designed to help pull wires through conduit bends. Sr. and Jr. are rated for 4,000 lbs of pull strength
Features
4,000 lbs. maximum pulling strength
4 wire slots
Attachment hole for Sr. & Jr. is .63 of an inch
Penguin Puller Sr. – 3/0 to 350 MCM Copper or Aluminum (2-1/2″ Pipe or Larger)
Penguin Puller Jr. – 2/0 to 4/0 Copper or Aluminum (2″ Pipe or Larger)
No tape, no crimps, no mess
Totally reusable
Free pulling Shackle included with each Penguin
Penguin Puller Jr 2/0 - 4/0 for conduits 2 inches or larger Part 69705
Penguin Puller Sr 3/0 - 350 MCM conduits 2 1/2 or larger Part 69700
Use you credit card through our secure Paypal cart
Please call Steve at 818-970-1702 to ask questions or to make an off line purchase
